Oil Diverter Manifold

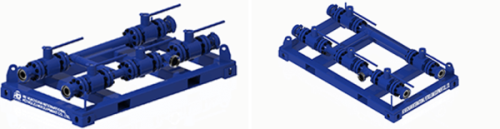

Diverter manifoldis valve assembly, used for diverting the produced oil and gas to the proper process destination. Oil diverter manifold diverts oil to the burner boom or surge tank, while gas diverter manifold diverts to flare stack or burner boom.
Oil Diverter Manifold
Diverter manifoldis valve assembly, used for diverting the produced oil and gas to the proper process destination. Oil diverter manifold diverts oil to the burner boom or surge tank, while gas diverter manifold diverts to flare stack or burner boom.
Code & Standards
API 6A PSL 3 PR1/PR2
NACE MR0175
CE/PED
DNV 2.7-1
Application
Exploration well testing
Extended well testing
Clean-ups and flowback operations
| Design Pressure | Size | Dimensions L X W X H | Configuration | ||||
| psi | bar | MPa | inch | mm | inch | m | |
| 1310 | 90 | 9.0 | 3 | 80 | 57.6 x 19.2 x 26.4 | 1.5 x 0.5 x 0.7 | 2-Valve oil manifold |
| 1360 | 94 | 9.4 | 3 | 80 | 57.6 x 19.2 x 26.4 | 1.5 x 0.5 x 0.7 | 2-Valve oil manifold |
| 1440 | 99 | 9.9 | 3 | 80 | 57.6 x 19.2 x 26.4 | 1.5 x 0.5 x 0.7 | 2-Valve oil manifold |
| 1310 | 90 | 9.0 | 3 | 80 | 85.2 x 39.6 x 26.4 | 2.15 x 1.0 x 0.7 | 5-Valve oil manifold |
| 1360 | 94 | 9.4 | 3 | 80 | 85.2 x 39.6 x 26.4 | 2.15 x 1.0 x 0.7 | 5-Valve oil manifold |
| 1440 | 99 | 9.9 | 3 | 80 | 85.2 x 39.6 x 26.4 | 2.15 x 1.0 x 0.7 | 5-Valve oil manifold |
| 1310 | 90 | 9.0 | 4 | 100 | 68.4 x 19.2 x 26.4 | 1.7 x 0.5 x 0.7 | 2-Valve gas manifold |
| 1360 | 94 | 9.4 | 4 | 100 | 68.4 x 19.2 x 26.4 | 1.7 x 0.5 x 0.7 | 2-Valve gas manifold |
| 1440 | 99 | 9.9 | 4 | 100 | 68.4 x 19.2 x 26.4 | 1.7 x 0.5 x 0.7 | 2-Valve gas manifold |
| 1332 | 92 | 9.2 | 6 | 150 | 92.4 x 30 x 33.6 | 2.3 x 0.7 x 0.84 | 2-Valve gas manifold |
| 1440 | 99 | 9.9 | 6 | 150 | 92.4 x 30 x 33.6 | 2.3 x 0.7 x 0.84 | 2-Valve gas manifold |
| 250 | 17.2 | 1.72 | 4 | 100 | 49.1 x 19.2 x 33.6 | 1.3 x 0.5 x 0.84 | 2-Valve vent manifold |
| 245 | 17 | 1.7 | 4 | 100 | 61.2 x 19.2 x 26.4 | 1.6 x 0.5 x 0.7 | 2-Valve vent manifold |
