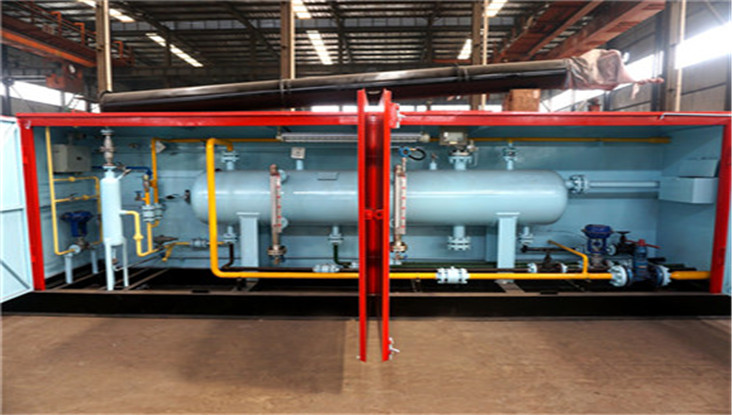

The integrated three-phase separator is an integral skid-mounted device with separator and water jacket furnace as the main body, which uses water as heat transfer medium. The high-pressure natural gas first passes through the water jacket furnace for heat exchange and temperature rise, and then flows into the separator after choking and pressure reduction. Afterwards, the three-phase separation of oil/gas/water is carried out in the separator, and then the separated natural gas is measured by orifice plate before exported.

The integrated three-phase separator adopts an automatic control system, which can automatically complete the detection of system temperature, pressure, differential pressure, oil/water interface, flow rate and other parameters, and has automatic data processing, automatic temperature control of water jacket furnace, oil level control, oil/water interface control, instantaneous flow and cumulative flow calculation, curve drawing, data management, zero correction, automatic report generation, printing and many other functions.

HC integrated three-phase separator is not only suitable for ordinary wells, but also for sour natural gas wells. So far, our equipment has been widely used in domestic oil and gas fields such as Changqing, Dagang, Jilin, Qinghai, Daqing, and exported to Iran, Algeria, Nigeria, Myanmar, Egypt and other countries and regions as well, bringing excellent economic benefits for users.

Our technical team is able to design suitable equipment for customers according to their different working conditions. If you have requirements, please send us the detailed parameters such as operating conditions, pressure, temperature, medium, etc., and we will provide you with the most cost-effective solution.
