Heater treater

stock
  • Size : 48''*20' / 48''*10' / 72''*20' / 96''*20'
  • Type : Vertical
  • Working/Design Pressure : Atmospheric pressure

Heater Treater, either vertical or horizontal, is an important mechanical equipment in the oilfield processing facility. It does not only perform the function of the two and/or three phase separators, but also function of indirect heater. Heater Treaters are the highly-effective equipment for emulsion breaking and ensuring better oil-water separation. It is also used in the oilfield with heavy crude oil.

Chat Online
Product Introduction

Product Parameters

Product Size Max.
Operation Temperature
Design Temperature Medium Medium Characteristics Main Pressure Component Volume Inlet Size Outlet Size Liquid Handling Capacity Gas Handling Capacity
48" * 20' 38 ℃ 100 ℃ Water Oil & Gas Non-toxic & non-explosive Q235B 16 m³ 3"FNPT300# 3"FNPT300# 3230 bpd 10.7 MMSCFD
48" * 10' 38 ℃ 100 ℃ Water Oil & Gas Non-toxic & non-explosive Q235B 3.8 m³ 4"FNPT300# 4"FNPT300# 2150 bpd 10.7 MMSCFD
72" * 20' 38 ℃ 100 ℃ Water Oil & Gas Non-toxic & non-explosive Q235B 7 m³ 114.3 * 6.4 grooving 114.3 * 6.4 grooving 11150 bpd 34.45 MMSCFD
96" * 20' 38 ℃ 100 ℃ Water Oil & Gas Non-toxic & non-explosive Q235B 30.6 m³ 4"FNPT300# 4"FNPT300# 19717 bpd 89.7 MMSCFD

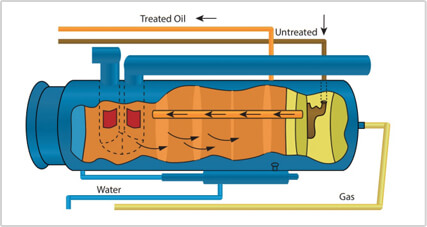

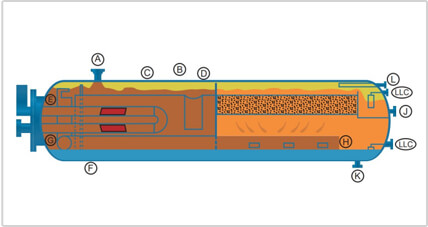

Working Process

  • https://www.hcpetroleum.hk/imgs/products/stock/stock_heater_treater_3.jpg
  • https://www.hcpetroleum.hk/imgs/products/stock/stock_heater_treater_4.jpg

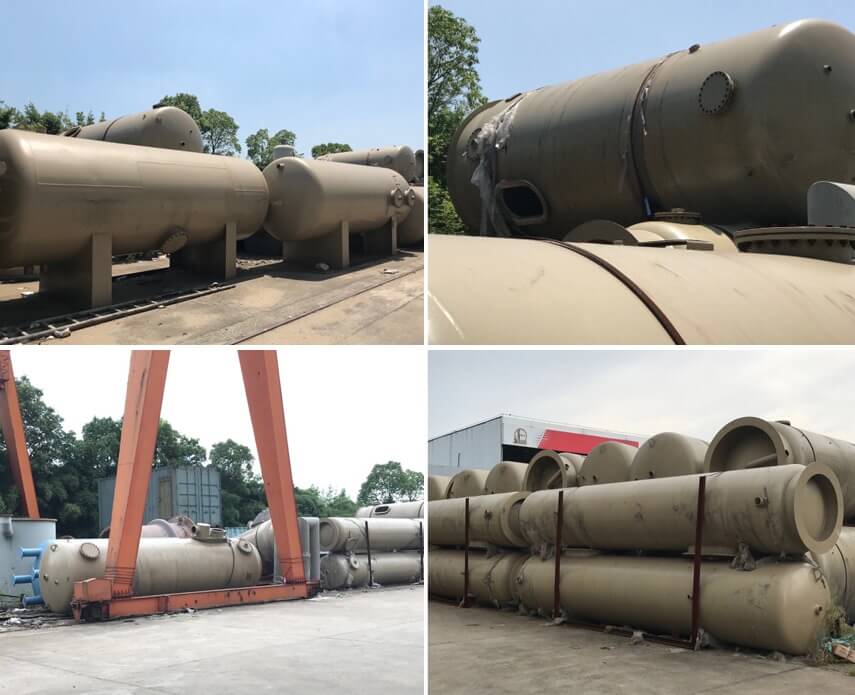

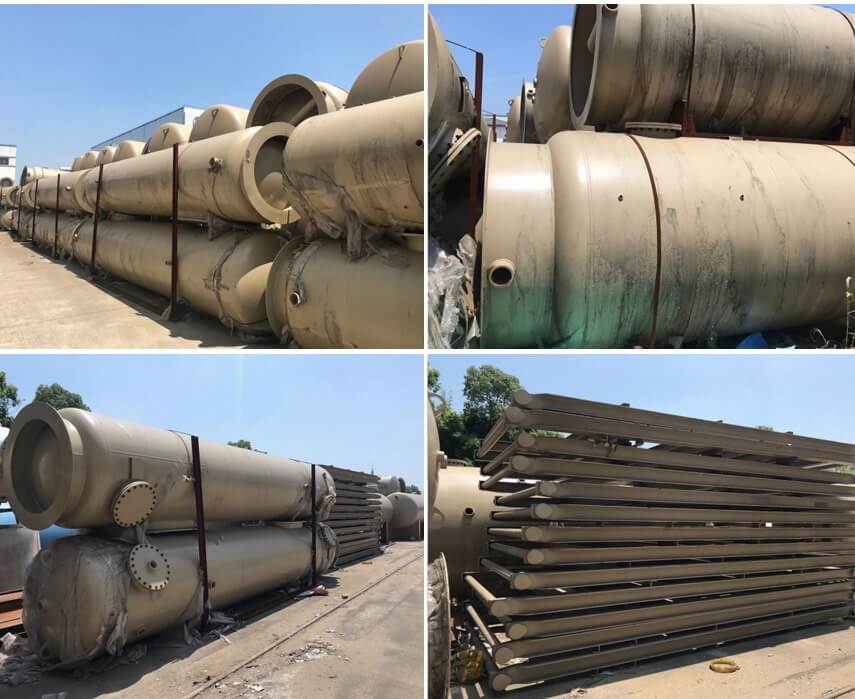

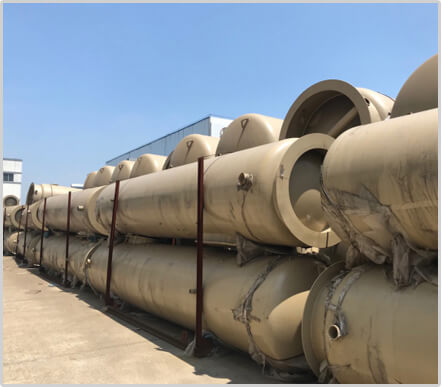

Product Photos
